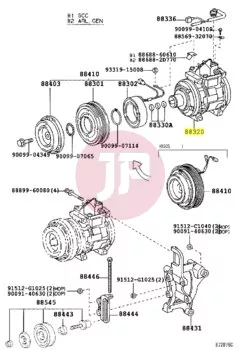

TOYOTA 88320-60750 A/C Compressor Assembly

The genuine Toyota 88320-60750 air conditioning compressor assembly (Compressor Assy) is the primary and most vital component of the vehicle's air conditioning system. Its purpose is to continuously circulate and compress the refrigerant within the closed-loop system, ensuring effective passenger cabin cooling and dehumidification.

Operating Principle and Function

The A/C compressor is driven by the engine's serpentine belt. It draws low-pressure gaseous refrigerant from the system, compresses it into a high-pressure, high-temperature gas, and pumps it toward the A/C condenser. This compression process is essential for the refrigerant to dissipate heat into the outside atmosphere before expanding through the expansion valve to absorb heat from the cabin.

Technical Specifications and Construction

• Manufacturer: TOYOTA (Genuine OEM part)
• Product Type: Air Conditioning Compressor Assembly (Compressor Assy)
• Drive Type: Pulley-driven design equipped with an electromagnetic clutch or internal control valve for efficient displacement and output control.
• Lubrication: Requires specialized A/C compressor oil (PAG oil) to prevent wear and friction among internal moving components.
• Material Quality: High-strength aluminum alloy casing for superior thermal dissipation and reduced weight.

Common Symptoms of Failure

• Noisy Operation: Metallic grinding, whining, or clicking noises originating from the engine bay when the A/C is activated, indicating bearing wear or internal mechanical damage.
• Poor Cooling Performance: The compressor fails to build sufficient operating pressure, resulting in warm or insufficiently cooled air from the vents.
• Leaks: Observable oil or refrigerant residue on the compressor casing or around the shaft seal.
• Clutch Failure: The compressor's magnetic clutch fails to engage (preventing operation) or seizes entirely.

Installation and Maintenance Guidelines

Replacing an air conditioning compressor requires specialized technical expertise. To ensure system longevity and prevent premature failure, it is essential to replace the receiver drier and expansion valve alongside the compressor, as well as thoroughly flush the entire A/C system to eliminate metal shavings and debris left by the previous compressor failure. The replacement unit must be filled with the correct type and quantity of compressor oil specified by the manufacturer.
