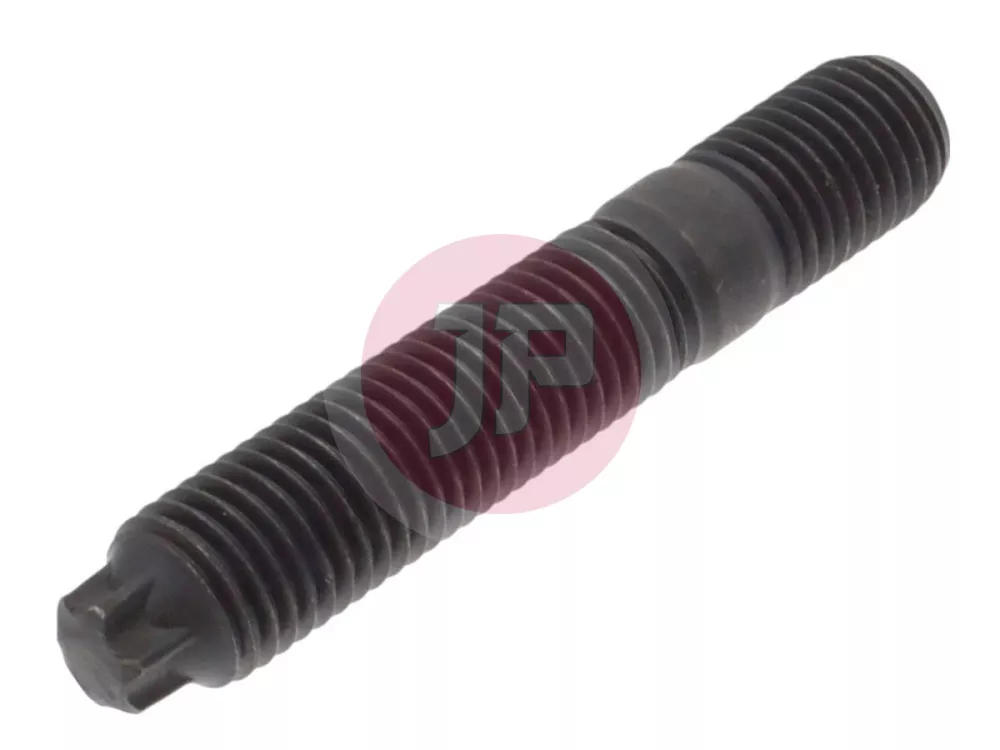

TOYOTA 90116-10171 Exhaust Stud Bolt

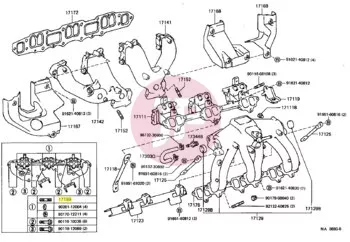

The genuine TOYOTA exhaust stud bolt (BOLT, STUD), part number 90116-10171, is a premium-quality, high-strength fastener specifically designed for the secure and gas-tight attachment of exhaust system components. Stud bolts play a critical role in securing the exhaust manifold (header) to the cylinder head, as well as at connections between exhaust pipes and catalytic converters, where extreme temperatures and vibration exert continuous stress.

Technical Features and Design

• Material Quality: Special alloy steel resistant to high temperatures and thermal expansion, preventing the bolt from loosening or prematurely shearing under extreme thermal loads.
• Surface Treatment: Corrosion-resistant and anti-seize coating that minimizes rusting and facilitates future disassembly.
• Design: Double-ended threaded shank (stud bolt) providing stable and uniform clamping force for optimal gasket compression.

Function and Signs of Failure

Exhaust stud bolts are continuously exposed to severe temperature fluctuations (thermal expansion and contraction) during engine operation, as well as environmental elements (moisture, road salt). Over time, these conditions can lead to metal fatigue or severe corrosion.

Most common signs of failure or wear:

• Exhaust Gas Leakage: If a stud stretches or breaks, the seal between the mated components loosens, resulting in exhaust blow-by and a characteristic rhythmic ticking noise from the engine bay.
• Visible Corrosion or Breakage: Due to material weakening caused by rust, the stud shank can shear off, especially during removal attempts.
• Thread Damage: Incorrect torque or thermal shock can strip or damage the threads, making proper fastening impossible.

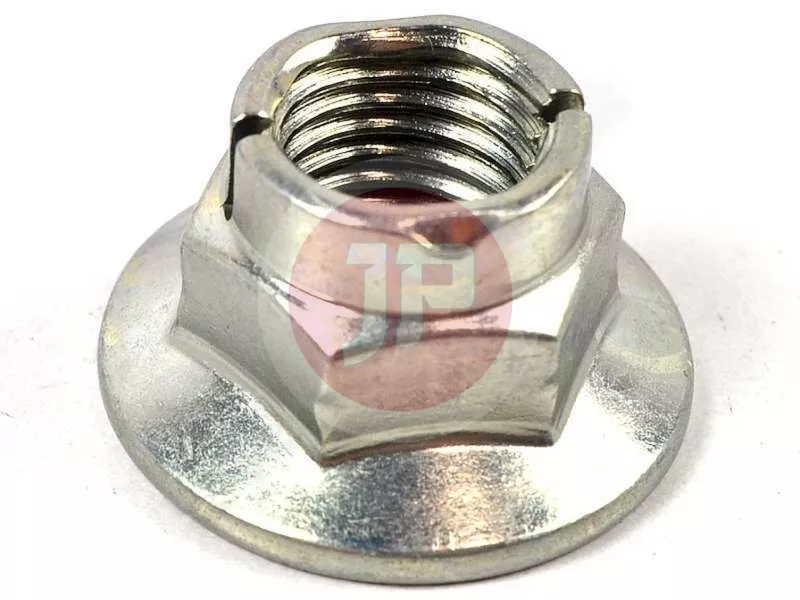

When servicing the exhaust system or replacing gaskets, replacing the studs and their matching nuts is strongly recommended to guarantee a reliable, long-lasting seal.
