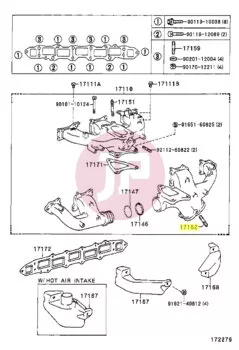

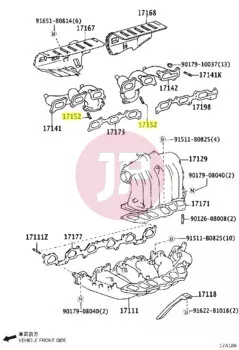

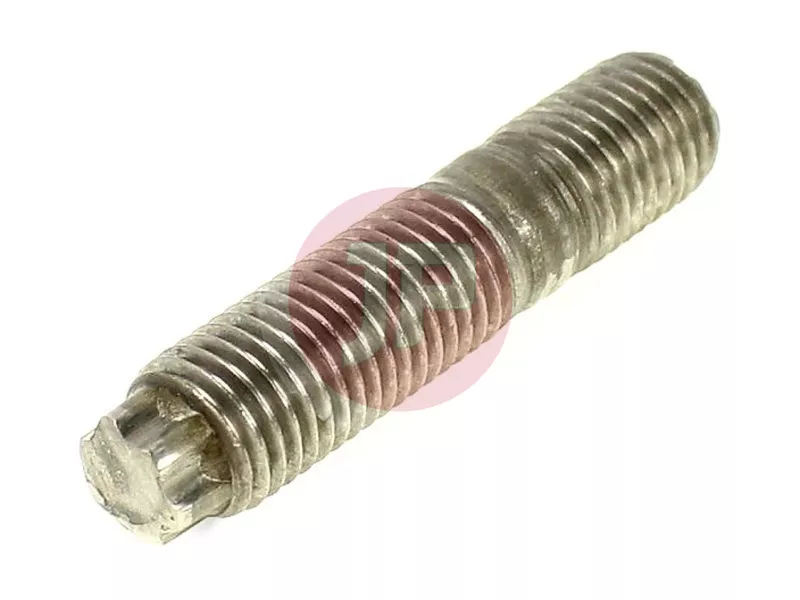

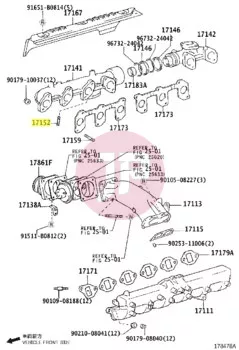

TOYOTA 90126-10006 Intake Manifold Stud

The genuine Toyota 90126-10006 stud (intake manifold mounting stud, factory designation: STUD, HEX LOBUL) is a premium quality, high-strength fastener specifically engineered for the precise and secure attachment of the intake manifold to the cylinder head. Its specialized design ensures uniform clamping pressure across gaskets, preventing intake leaks and unmetered false air ingress.

Technical Specifications and Features:

• Material Quality: High-tensile, heat-treated alloy steel capable of withstanding extreme temperature fluctuations and mechanical stresses in the engine bay.
• Surface Treatment: Specialized anti-corrosion coating that protects the threads from galling, seizing, rust, and environmental exposure.
• Drive Profile (Hex Lobular): The star/hex lobular profile enables precise torque application during installation, minimizing the risk of tool slippage and thread damage.
• Application: Primarily used for securing intake manifolds, intake runners, and other high-temperature engine components.

Role and Importance of the Stud:

Studs utilized for mounting the intake manifold play a critical role in optimal engine performance by guaranteeing complete gas-tight sealing between the intake manifold and the cylinder head. If fastening is compromised, the engine can draw in unmetered air, resulting in a lean air-fuel mixture, rough idle, reduced performance, and diagnostic trouble codes in the engine control unit (ECU).

Signs of Failure or Wear:

• Thread Damage or Stretching: Frequently caused by incorrect tightening torque (over-torquing).
• Mechanical Shearing or Fracture: Continuous engine vibration and thermal expansion fatigue can cause the stud to shear or snap.
• Corrosion and Seizing: Oxidation can cause the stud to seize inside the cylinder head, leading to breakage during removal.
• Intake Manifold Gasket Leaks: A loosened or stretched stud diminishes clamping force, resulting in vacuum and air leaks.
