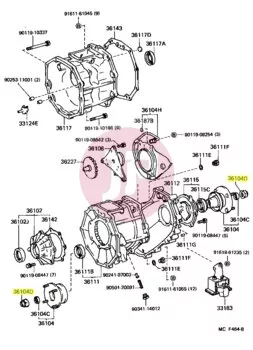

TOYOTA 90179-22016 Transfer Case Lock Nut

The Toyota 90179-22016 (supersession part number: 9017922011) is an OEM-quality, high-strength transfer case lock nut (flange retaining nut) that plays a critical role in the vehicle's four-wheel/all-wheel drive and powertrain system. This specialized fastener is primarily designed to securely retain the companion flanges on the transfer case output shafts.

Technical Features and Specifications

The lock nut design meets the strictest Japanese OEM standards, ensuring a precise fit and maximum torque tolerance:

• Manufacturer: TOYOTA (Original Equipment Manufacturer)
• Part Number: 90179-22016 (Alternative references: 9017922011, 90179-22011)
• Type: Flanged lock nut (Staking lock nut)
• Material Grade: Heat-treated, high-strength carbon steel to prevent elongation and thread deformation
• Surface Treatment: Corrosion-resistant phosphated or zinc-plated finish
• Locking Method: Mechanical locking (secured by staking/peening the collar into the shaft groove)

Function and Importance in the Powertrain

Due to the high rotational speeds, vibration, and sudden torque reversals occurring in the transfer case, conventional nuts can easily back off. This genuine Toyota lock nut features a special deformable collar. After being torqued to specification, this collar is staked (punched) into the mating groove on the shaft, mechanically preventing the nut from loosening.

When Is Replacement Required?

This retaining nut is strictly a single-use part. A new nut must be installed after any maintenance or repair procedure involving disassembly of the transfer case, replacement of the shaft oil seal, or removal of the driveshaft companion flange. Reusing an old nut is prohibited, as the previously deformed locking collar no longer guarantees reliable retention.

Risks of improper fastening or reusing an old nut:

• Loosening of the transfer case output flange
• Severe drivetrain vibration and premature bearing wear
• Oil leakage at the transfer case oil seal
• In severe cases, catastrophic drivetrain failure while driving and cracking of the transfer case housing
