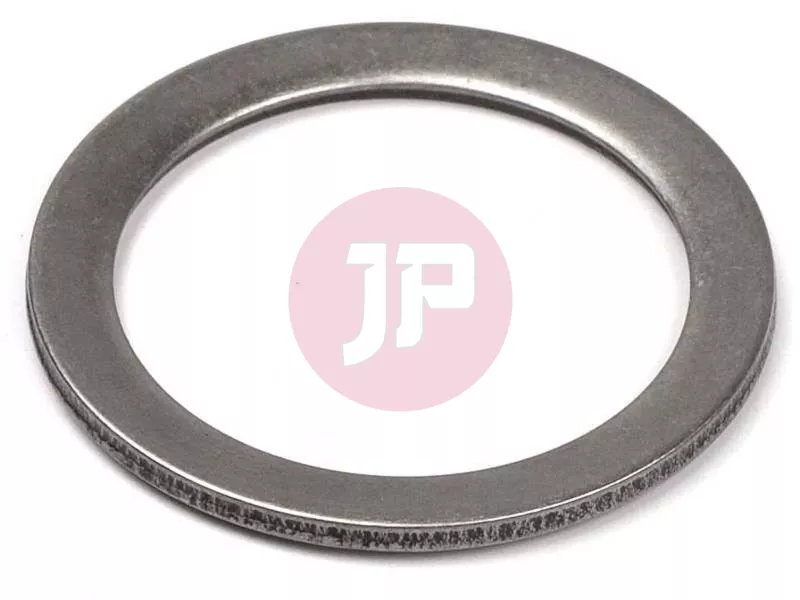

TOYOTA 90208-48002 Rear Axle Shaft Conical Washer

Toyota genuine part number 90208-48002 is a premium quality conical washer designed specifically for the rear axle shaft retention system. This precision component plays a crucial role in securing the stability and preloading of axle connections.

Technical Features and Function

Due to its specialized geometry, the conical washer (Belleville washer) acts like a spring. When the retaining nut is torqued, the washer elastically deflects, providing continuous axial clamping force. This constant preload is essential for the secure fastening of the rear axle shaft.

• Component Type: Conical washer (Washer, Conical)
• Fitting Position: Rear axle shaft / rear wheel hub fastening
• Material: High tensile strength, hardened spring steel for maximum durability
• Surface Treatment: Anti-corrosion coating for protection against environmental elements

Significance and Operation

During operation, the rear axle shaft is subjected to severe dynamic loads, vibration, and temperature fluctuations. Unlike conventional flat washers, a conical washer compensates for microscopic movements caused by thermal expansion and mechanical vibrations, preventing the retaining nut from backing off or loosening.

Signs of Wear and Failure

Replacement of the conical washer is recommended whenever the axle shaft assembly is disassembled for service, as the washer can lose its original spring tension through repeated installation. Primary signs of failure include:

• Plastic Deformation: The washer permanently flattens and loses its elastic clamping force.
• Fatigue Cracking: Sustained dynamic loading can cause hairline surface cracks, ultimately leading to washer fracture.
• Corrosion Damage: Rust caused by moisture and road salts weakens the structural integrity of the material.
