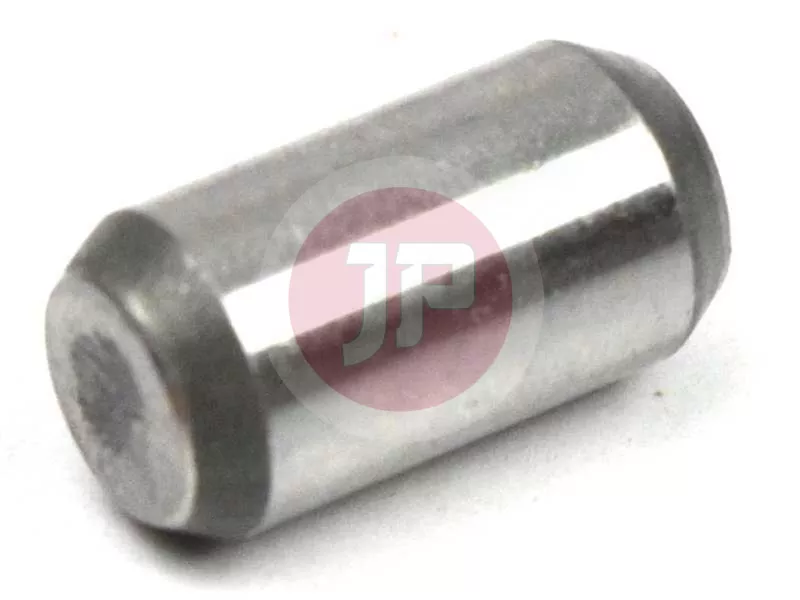

TOYOTA 90250-06068 Straight Pin

The genuine OEM Toyota 90250-06068 straight pin (also known as a dowel pin) is a high-precision fastening and locating element used across various mechanical assemblies of the vehicle. Its primary function is to ensure precise, shift-free positioning of mating components during assembly, as well as effectively absorbing shear forces during operation.

Technical Specifications and Features

• Type: Straight pin / Dowel pin
• Manufacturer: Toyota (Genuine OEM part)
• Material: High-strength, hardened, and ground steel resistant to mechanical deformation and wear.
• Surface Treatment: Anti-corrosion protective coating for long service life.
• Application Area: Engine block, cylinder head, transmission housings, and other mechanical assemblies requiring precision alignment.

Function and Importance

Straight pins are critical during the assembly of engine and drivetrain components. They ensure that mating surfaces (such as the cylinder head and engine block) achieve perfect alignment. This is vital for the proper seating of gaskets, preventing fluid leakage, and maintaining exact coaxial alignment for rotating shafts. Fastening bolts alone cannot provide this micrometer-level precision alignment, which is why dowel pins are required.

Signs of Wear and Failure

Although straight pins are not typical wear items, replacement may become necessary in the following cases:

• Mechanical damage or deformation: The pin may bend or become crushed during improper disassembly or reassembly.
• Corrosion: Moisture exposure may cause the pin to seize in the bore, leading to damage to mating metal surfaces.
• Material fatigue or fracture: Extreme vibration or mechanical overload can cause the pin to snap, leading to component misalignment and severe engine or drivetrain damage.

During maintenance or engine rebuilds, damaged, deformed, or heavily corroded dowel pins should always be replaced with a new genuine Toyota part to ensure perfect fitment and reliable operation.
