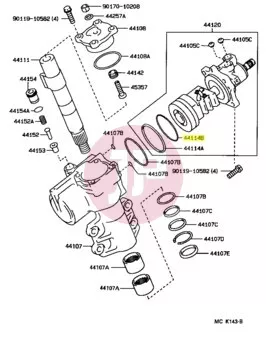

TOYOTA 90301-73002 Steering Gear O-Ring

The genuine Toyota 90301-73002 steering gear O-ring is a precision sealing component essential for the proper and safe operation of the vehicle's hydraulic steering system. This compact yet critical part maintains hydraulic pressure and prevents power steering fluid from leaking out of the steering gear's internal chambers.

Technical Features and Material Quality:

• High-Grade Material: Manufactured from specialized, high-density elastomer (NBR or HNBR) offering outstanding resistance to hydraulic fluids, power steering oils, and elevated operating temperatures.
• Precision Fit: Engineered to genuine OEM specifications to ensure a reliable seal and long service life within the steering gear hydraulic cylinders or control valve.
• Wear Resistance: Withstands continuous pressure fluctuations and mechanical stress.

Function and Importance of the Steering Gear O-Ring:

The hydraulic power steering system operates under high pressure. The O-ring separates chambers of different pressure levels and prevents working fluid from escaping the system. A loss of sealing integrity directly impacts steering efficiency and driving safety.

Typical Signs of Failure or Wear:

• Power steering fluid leaks: Appearance of fluid spots on the steering gear housing, around the steering rack boots, or underneath the vehicle.
• Stiff steering: Turning the steering wheel may become noticeably harder due to pressure loss, especially at low speeds.
• Noisy operation: Low fluid levels caused by leaks can introduce air into the system, producing a whining or humming noise from the power steering pump.
• Continuous drop in power steering fluid level in the expansion reservoir.

Replacement of steering gear seals is recommended to be carried out in a specialized workshop according to OEM specifications during steering gear overhaul or repair.
