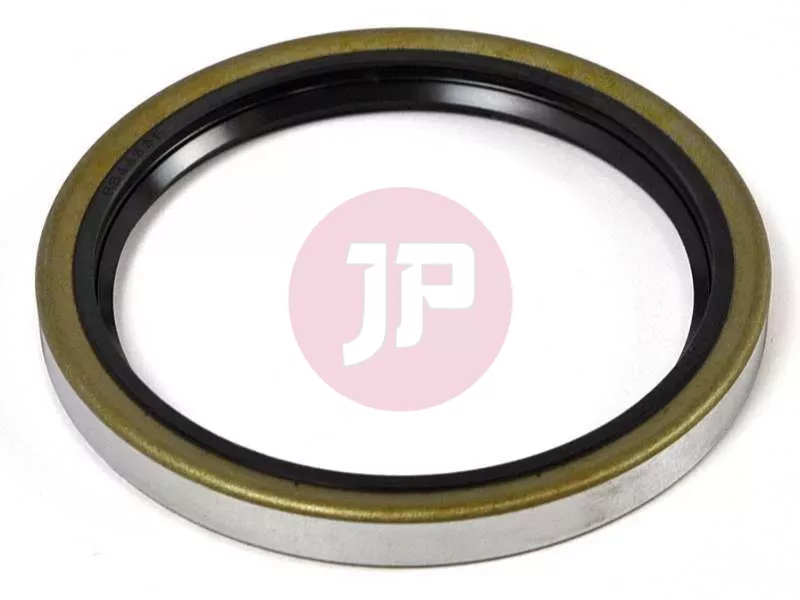

TOYOTA 90310-58002 Wheel Hub Oil Seal
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Product Description
The Toyota 90310-58002 genuine (OEM) wheel hub oil seal (SEAL, TYPE S OI) is a premium-quality radial shaft seal responsible for maintaining proper lubrication and protecting wheel hub bearings. Thanks to precision manufacturing technology, this seal ensures a perfect fit and long service life within the vehicle's running gear and drivetrain system.
Technical Features and Construction
- Type: Type S OI (single-lip radial shaft seal with garter spring)
- Primary Function: Retaining wheel hub bearing lubricant (grease or oil) and preventing the ingress of external contaminants (dust, mud, water).
- Material Composition: High heat- and wear-resistant elastomer with a metal reinforcing case and stainless steel garter spring to ensure constant radial clamping force on the sealing lip.
- Installation Position: Wheel hub / axle shaft output.
Role and Importance of the Wheel Hub Oil Seal
The wheel hub seal is a critical safety component. If the oil seal degrades or becomes damaged, bearing grease or gear oil can escape past the sealing surface. This can lead not only to premature bearing failure (dry running, overheating) but can also cause severe loss of braking efficiency if it reaches the brake system. The genuine Toyota seal guarantees compliance with factory tolerances and maximum operational safety.
Typical Signs of Failure
- Appearance of oil or grease spots on the inside of the wheel rim, at the brake caliper, or on the brake backing plate.
- Rubbing or humming/growling noises originating from the wheel hub while driving (a symptom of a damaged bearing due to lubricant loss).
- Uneven braking or reduced braking efficiency due to lubricant contaminating the friction surfaces.
When replacing the oil seal, it is always recommended to clean the shaft connection, inspect the condition of the bearings, and repack with grease if necessary.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.020 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Dyna / Toyoace (U300/U400/Y200) | All Engines | 2001 - 9999 | SEAL, OIL (FOR REAR AXLE SHAFT RH) |
| Toyota | Land Cruiser 100 (J100) | 4.2 TD (1HDFTE) | 1998 - 2007 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (HDJ100, 1HDFTE) |
| Toyota | Land Cruiser 100 (J100) | 4.7 (2UZFE) | 1998 - 2007 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (UZJ100, 2UZFE) |
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 2002 - ... | SEAL, OIL (FOR REAR AXLE SHAFT RH) (FZJ100, 1FZFE) |
| Toyota | Land Cruiser 70 (J70) | 2.4 TD (2LT) | 1990 - 1996 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (LJ70, 2LT) |
| Toyota | Land Cruiser 70 (J70) | 3.0 TD (1KZT) | 1993 - 1996 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (KZJ70, 1KZT) |
| Toyota | Land Cruiser Prado (J90) | 3.0 TD (1KZT) | 1996 - 1999 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (KZJ90, 1KZT) |
| Toyota | Land Cruiser Prado (J90) | 2.7 (3RZF) | 1996 - 2003 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (RZJ95, 3RZF) |
| Toyota | Land Cruiser Prado (J90) | 3.4 (5VZFE) | 1999 - 1999 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (VZJ90, 5VZFE) |
| Toyota | Land Cruiser Prado (J90) | 3.0 D-4D (1KDFTV) | 1999 - 2002 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (KDJ90, 1KDFTV) |
| Toyota | Lexus LX (J100) | 4.7 (2UZFE) | 1998 - 2007 | SEAL, OIL (FOR REAR AXLE SHAFT RH) (UZJ100, 2UZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
