TOYOTA 90311-41009 Differential Pinion Oil Seal

The genuine OEM part Toyota 90311-41009 is a premium quality differential input shaft oil seal designed to ensure reliable, leak-free operation of the drivetrain. This specially engineered seal (Type T OI) specifically retains lubricant at the differential input shaft (drive pinion shaft).

Technical Specifications and Construction

• Type: Type T OI (radial shaft seal with dust lip and garter spring).

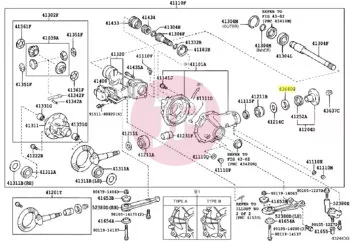

• Installation Position: Differential input / drive pinion shaft (pinion seal).
• Material: High temperature- and oil-resistant synthetic elastomer with a metal reinforcing case, offering exceptional resistance to gear oil additives and high operating temperatures.
• Design: The integrated dust lip prevents external contamination (dust, moisture, road salt) from entering the differential housing, while the primary sealing lip, backed by a garter tension spring, maintains consistent, optimal sealing pressure against the rotating shaft.

Function of the Seal and Symptoms of Wear

The differential input oil seal is essential for preserving the service life of the differential assembly. Seal failure leads to gear oil leakage, causing insufficient lubrication, accelerated wear of gears and bearings, and potentially complete differential failure.

Common symptoms of wear or failure:

• Oil leaks or oil mist visible around the differential companion flange (driveshaft connection).
• Fresh oil spots or puddles under the vehicle directly aligned with the differential.
• Metallic humming, whining, or grinding noise while driving, caused by increased friction resulting from low lubricant levels.
