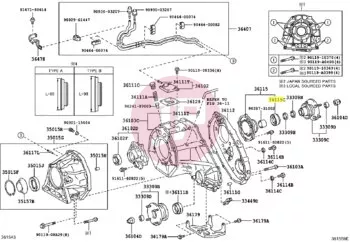

TOYOTA 90311-41020 Transfer Case Output Shaft Oil Seal

The Toyota (SKU: 90311-41020) is a genuine OEM transfer case output shaft oil seal (Type T Oil Seal) that plays a critical role in retaining drivetrain lubricant and excluding external contaminants. This precision seal ensures that gear oil does not leak along the shaft exiting the transfer case, protecting internal gears and bearings from dry running and premature wear.

Technical Features and Construction

Type T oil seals are specifically engineered to seal heavy-duty rotating shafts. Key features include:

• Double-Lip Design: The primary sealing lip prevents fluid leakage, while the auxiliary dust lip keeps out dust, mud, and other environmental contaminants.
• Garter Spring: An internal coiled tension spring provides constant, optimal radial clamping force against the shaft surface, compensating for thermal expansion and minor radial shaft runout.
• Material Composition: High-grade, heat- and oil-resistant elastomer (typically NBR or polyacrylic rubber) formulated to withstand modern gear lubricants and transfer case operating temperatures.
• Interchangeable OEM Part Numbers: 90311-41007, 9031141020.

Function and Signs of Failure

The transfer case output oil seal is subjected to continuous rotational friction. Over time, the elastomer can age, harden, or crack. The most common symptoms of failure include:

• Oil Leakage or Seepage: Formation of oil droplets around the transfer case output area or directly beneath the vehicle.
• Low Transfer Case Oil Level: Decreased lubricant volume resulting from leaks, potentially causing increased driveline noise (whining, humming) and gear overheating.
• Contaminant Ingress: If the protective dust lip is compromised, dirt and moisture can penetrate the assembly, exerting an abrasive effect on the seal lip and shaft surface.

To preserve proper lubrication and maintain drivetrain reliability, a damaged or leaking oil seal should be replaced promptly with a genuine OEM part.
