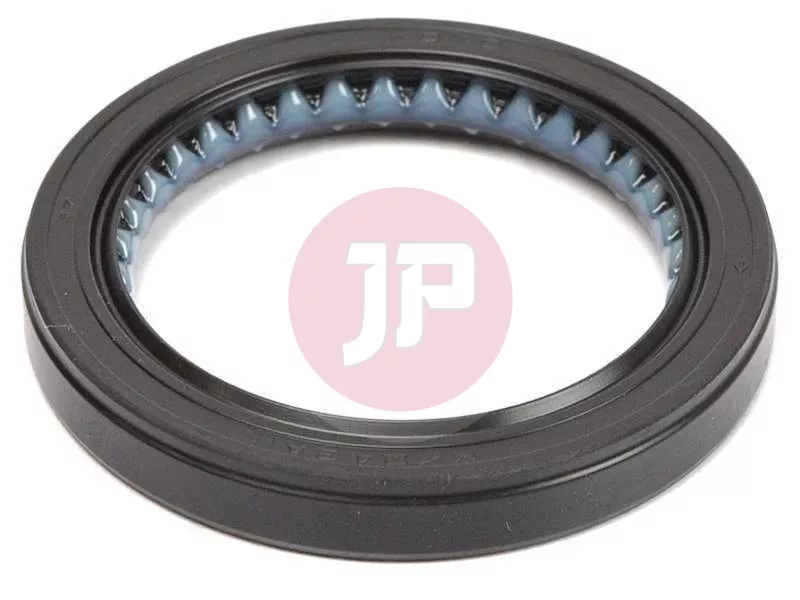

TOYOTA 90311-43008 Transfer Case Oil Seal

The genuine OEM Toyota 90311-43008 part is a premium-quality transfer case oil seal (shaft seal) designed to ensure optimal operation and long service life of the drivetrain system. Genuine Toyota parts guarantee precise fitment and maximum durability matching factory specifications.

Technical Features and Functions:

• Part Type: Shaft Seal (Oil Seal - Type T OI)
• Installation Location: Transfer Case
• Material Composition: High heat- and wear-resistant elastomer compound resistant to transmission oils and elevated operating temperatures.
• Design: Constructed with an integrated metal reinforcing case and a dust lip, providing effective protection against the ingress of external contaminants (dust, mud, water) while reliably retaining lubricant.

Role and Importance of the Seal:

The transfer case oil seal provides dynamic sealing around rotating shafts. In all-wheel drive and four-wheel drive systems, the transfer case is constantly subjected to high mechanical loads and thermal stress. Proper sealing is essential to keep lubricating oil inside the transfer case housing, ensuring continuous lubrication and cooling of gears and bearings.

Common Symptoms of Wear and Failure:

• Oil Leakage: Fresh oil droplets or persistent wet oil spots appearing around the transfer case housing or on the ground beneath the vehicle.
• Noisy Operation: Reduced oil levels due to leakage lead to insufficient lubrication, which can cause metallic friction, humming, or whining noises from the transfer case.
• Ingress of Contaminants: A damaged sealing lip can allow dust and moisture into the system, accelerating wear on internal components and degrading the lubricant.

When replacing the oil seal, it is always recommended to refill with transfer case oil meeting factory specifications, and to thoroughly clean and inspect the mating shaft surfaces.
