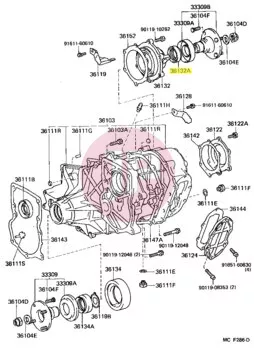

TOYOTA 90311-48010 Transfer Case Output Shaft Oil Seal
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
OEM / Alternate Numbers
Product Description
The Toyota 90311-48010 is a premium quality, genuine OEM transfer case output shaft oil seal (shaft seal), essential for maintaining proper drivetrain operation and lubrication.
Technical Characteristics and Specifications:- Manufacturer: TOYOTA
- OEM Part Number (SKU): 90311-48010
- Alternative / OEM References: 90311-48003 (9031148003)
- Type: Radial shaft seal with dust lip and garter spring
- Application Area: Transfer case output shaft sealing
- Material: High-quality, wear-resistant, and high-temperature resistant elastomer compound compatible with modern gear oils
The transfer case output shaft seal is designed to seal the interface between the rotating output shaft and the transfer case housing. It prevents lubricating oil from leaking out of the transfer case while acting as an effective barrier against external contaminants such as dust, dirt, and moisture. The integrated dust lip provides additional protection against fine abrasive particles, extending the operating life of internal bearings and gears.
Typical Symptoms of Failure:- Oil leaks or oil mist accumulation around the transfer case output shaft.
- Oil spots on the ground beneath the vehicle in the area of the transfer case.
- Continuous drop in the transfer case oil level.
- Unusual whining or humming noises from the drivetrain caused by insufficient lubrication.
Timely replacement of the seal prevents severe and costly transfer case failures caused by running dry.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.020 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 40 (J40) | All Engines | 1980 - 1985 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) |
| Toyota | Land Cruiser 60 (J60) | 4.0 (3FE) | 1980 - 1992 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (BJ60, 3FE) |
| Toyota | Land Cruiser 60 (J60) | 4.0 TD (12HT) | 1984 - 1987 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (BJ60, 12HT) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 1984 - 1990 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (BJ70, 13BT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1993 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (FJ75, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 3.0 TD (1KZT) | 1993 - 1996 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (KZJ70, 1KZT) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1993 - 1994 | SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (PZJ70, 1PZ) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
