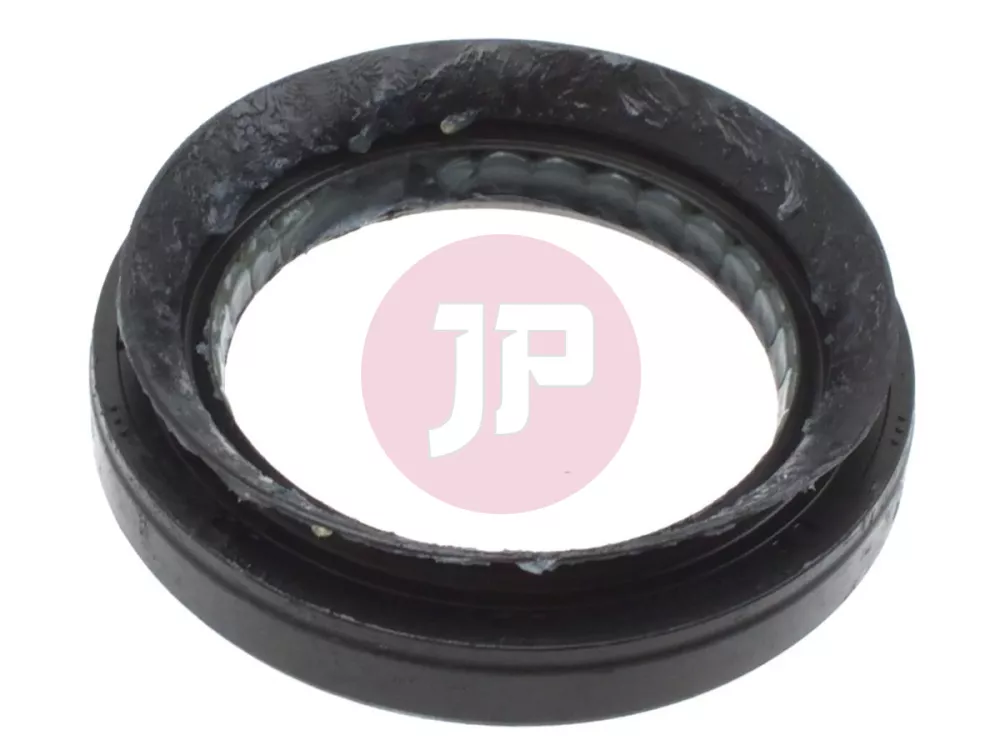

TOYOTA 90311-50039 Transfer Case Oil Seal

The Toyota 90311-50039 genuine OEM transfer case oil seal (SEAL, TYPE T OIL) is a premium-quality radial shaft seal specifically engineered to protect the drivetrain and ensure leak-free lubricant retention. It is a critical component of the transfer case that ensures gear oil remains inside the housing while preventing dust, water, and other environmental contaminants from penetrating along the rotating shafts.

Technical Features and Construction

• Type: Type T radial shaft seal (oil seal).
• Design: Sealing lip equipped with an integrated garter spring to ensure optimal radial sealing force, along with an auxiliary dust lip to effectively keep out external contaminants.
• Material Composition: High heat- and oil-resistant elastomer (typically NBR, polyacrylate, or fluoroelastomer) resistant to gear oils and elevated operating temperatures.
• Application Area: Transfer case input or output shaft seal.

Role and Importance

The gears and bearings inside the transfer case require continuous lubrication. When the seal deteriorates or sustains damage, oil begins to leak, causing a decrease in transfer case fluid levels. Inadequate lubrication can lead to increased friction, overheating, and ultimately complete transfer case failure, resulting in costly repairs.

Common Symptoms of Wear and Failure

• Oil spots or moisture under the vehicle, specifically around the transfer case area.
• Visible oil sludge or fresh fluid accumulation at the shaft output/input.
• Abnormal humming or whining noises from the drivetrain (indicating increased friction due to low fluid levels).

Genuine Toyota parts guarantee an accurate fit, extended service life, and reliable performance in full compliance with factory specifications.
