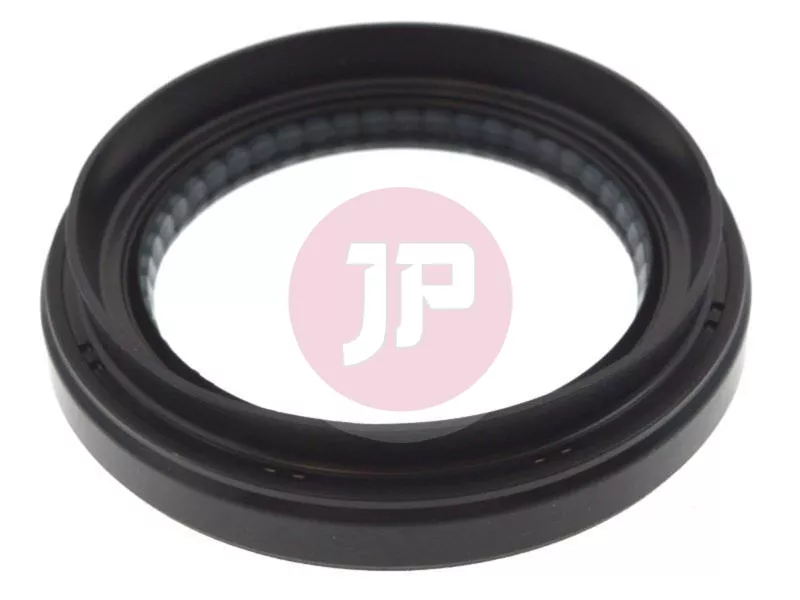

TOYOTA 90311-50065 Transfer Case Oil Seal

The Toyota genuine part number 90311-50065 is a premium quality transfer case oil seal (SEAL TYPE T OIL) that ensures reliable, leak-free operation of the drivetrain. This specialized seal prevents gear oil leakage while providing effective protection against the ingress of external contaminants, dust, and moisture.

Technical Features and Properties

• Type: Type T radial shaft seal with an auxiliary dust lip and integrated garter spring for an optimal fit.
• Material Composition: Highly heat- and oil-resistant synthetic elastomer (NBR), offering excellent resistance to the chemical components of modern gear oils and continuous frictional heat.
• Application Area: Dynamic sealing of rotating transfer case shafts, ensuring lubricant retention within the closed system.

Role of the Oil Seal and Signs of Wear

The transfer case oil seal is subjected to continuous rotary motion, mechanical stress, and high operating temperatures. Over time, material elasticity can diminish due to natural aging, leading to microscopic cracking and eventual leaks. Timely replacement of the seal is critical to protect the internal gears and bearings of the transfer case.

Typical Symptoms of Failure:

• Oil leaks or oil mist appearing on the transfer case housing around the shaft outputs.
• Fresh oil spots appearing underneath the vehicle when parked.
• Gradual decrease in the transfer case lubricant level.
• Unusual humming or whining noises from the drivetrain resulting from insufficient lubrication.
