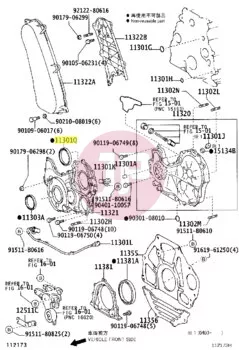

TOYOTA 90311-65003 Crankshaft Oil Seal

The Toyota 90311-65003 is a genuine OEM crankshaft oil seal (radial shaft seal) that plays a critical role in hermetically sealing the engine lubrication system. This premium-quality "Type T OI" seal prevents engine oil from escaping along the rotating crankshaft while providing effective protection against external contaminants (dust, moisture, fine particles) entering the engine. The genuine Toyota part guarantees precise dimensional tolerances and optimal tension in accordance with factory specifications.

Technical Specifications

• Part Number (SKU): 90311-65003
• Manufacturer: TOYOTA (Genuine OEM part)
• Description: Crankshaft oil seal (SEAL, TYPE T OI)
• Nominal Inner Diameter: 65 mm
• Nominal Outer Diameter: 88 mm
• Width / Thickness: 9 mm
• Material: Premium elastomer resistant to high temperatures and aggressive engine oils (FKM/Viton or specialized polyacrylate) that retains its elasticity under extreme operating conditions.
• Design: Features an additional dust protection lip (Type T) for enhanced protection.

Function and Importance of the Crankshaft Oil Seal

The crankshaft oil seal is one of the engine's most critical dynamic seals. Because it seals directly against the surface of the crankshaft rotating at high speeds, it is exposed to continuous friction and thermal stress. The microscopic oil film that forms under the sealing lip provides lubrication, preventing shaft scoring, while the garter spring maintains continuous radial contact force. Using a genuine-quality seal is essential for the long-term, reliable operation of the engine and for compliance with environmental standards.

Signs of Failure and Wear

Natural wear of the seal, material aging (hardening, cracking), or improper installation can lead to the following symptoms:

• Oil Leakage: Appearance of oil spots under the vehicle, or the presence of an oil film on the lower engine block (at the pulley in the case of a front seal, or at the engine-to-transmission mating surface in the case of a rear seal).
• Oil Consumption: Continuous decrease in engine oil level caused by external leakage.
• Clutch Issues: In the event of a rear crankshaft seal leak, engine oil can reach the clutch disc, causing clutch slip and premature failure.
• Contaminant Accumulation: Dust adhering to leaking oil forms an abrasive paste that can damage the crankshaft running surface.

Note: Replacing a crankshaft oil seal is a labor-intensive process (especially for a rear seal, which requires removing the transmission); therefore, using a genuine OEM Toyota part is always recommended to ensure long-term reliability.
