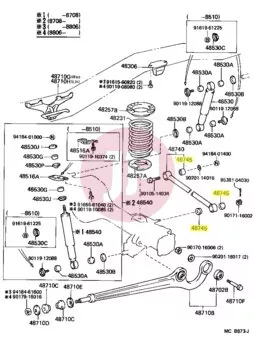

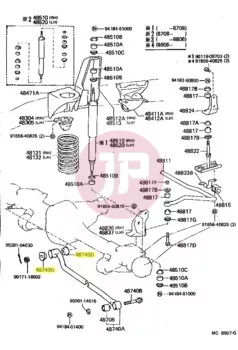

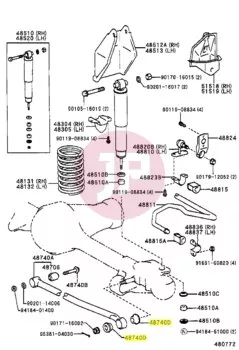

TOYOTA 90389-20001 Panhard Rod Bushing

The genuine TOYOTA 90389-20001 Panhard rod bushing (suspension bushing) is a premium quality genuine part responsible for suspension stabilization on solid axle vehicles. The Panhard rod (track bar) bushing provides the connection between the suspension axle and the body/chassis, minimizing lateral displacement while absorbing road vibrations and impacts.

Technical Features and Construction

• Part Type: Panhard rod bushing (BUSH)
• Material Composition: Combination of high-tensile vulcanized rubber and a steel sleeve, engineered to withstand heavy mechanical loads and environmental influences (moisture, mud, road salt).
• Manufacturer Quality: Genuine Toyota OEM part, guaranteeing perfect dimensional accuracy along with factory-specified stiffness and damping characteristics.
• Role in the Suspension: Maintains the geometric alignment of the rear axle relative to the body, enhancing straight-line tracking and cornering stability.

Common Symptoms of Wear

Bushings are natural wear items that age over time under continuous mechanical stress. The most common signs of deterioration or failure include:

• Knocking, rattling, or metallic noises from the suspension, particularly over uneven surfaces or during cornering.
• Vague, unstable handling, or a floating, swaying sensation from the rear of the vehicle in turns.
• Cracking, hardening, or debonding of the rubber core from the metal sleeve (identified during visual inspection).
• Uneven tire wear resulting from altered axle geometry.

To ensure driving safety and stable handling, immediate replacement of worn Panhard rod bushings is recommended, ideally in pairs for both ends of the rod.
