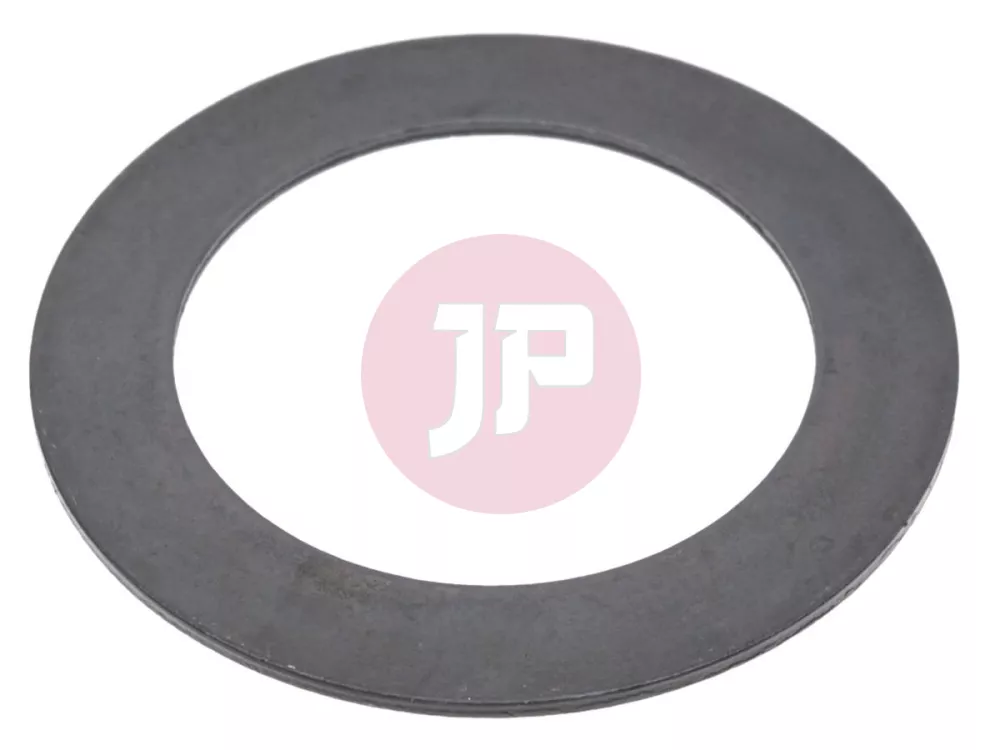

TOYOTA 90564-40023 Differential Pinion Shim Washer

The genuine OEM Toyota 90564-40023 differential pinion shim washer is a high-precision component required for the accurate adjustment and reliable operation of the vehicle's differential. This shim washer (also known as an adjusting shim) is used to set the axial position of the drive pinion shaft, as well as to precisely calibrate the backlash between the pinion and ring gear and adjust bearing preload.

Technical Features and Operating Principle:

• Precision Dimensional Tolerances: Genuine Toyota shims are manufactured to strict tolerances, ensuring micrometer-level accuracy essential for achieving an optimal gear tooth contact pattern.
• Premium Material Quality: Made from specially hardened, high-tensile steel designed to withstand extreme pressures, friction, and operating temperatures within the differential.
• Wear Resistance: Minimizes the risk of developing axial play over the entire service life of the drivetrain.

Importance of Differential Shimming and Symptoms of Failure:

Using an incorrect shim thickness or driving with a worn shim leads to improper gear mesh, which can cause the following symptoms:

• Whining or Humming Noise: A humming or whining noise coming from the differential, typically occurring during acceleration or engine braking, caused by improper gear backlash.
• Accelerated Wear and Metal Filings: Incorrect contact patterns can damage gear tooth surfaces, resulting in metallic particles contaminating the differential fluid.
• Driveline Vibration: Imbalance caused by axial endplay in the pinion shaft can induce vibrations throughout the driveshaft and axle shafts.

When overhauling a differential or replacing bearings, using genuine Toyota shim washers ensures factory performance, quiet operation, and maximum drivetrain service life.
