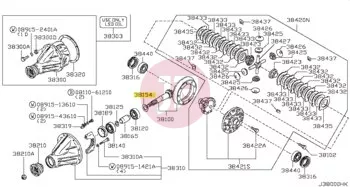

NISSAN 38151-01J8B Adjustment Shim

This genuine NISSAN (OEM part number: 38151-01J8B) adjustment shim (SHIM ADJUST) is a premium-quality original component designed for micrometer-precise clearance adjustment in mechanical assemblies of the vehicle, particularly within the drivetrain, differential, and transmission.

Technical Specifications:

• Part Type: Adjustment Shim / Adjusting Washer (Shim Adjust)
• Manufacturer: NISSAN (Genuine OEM part)
• Material Composition: High-strength, hardened steel alloy for minimal wear and maximum load capacity.
• Application Area: Precision adjustment of axial play and preload in differentials, clutches, transmission shafts, and bearings.
• Resistance: Excellent thermal tolerance and resistance to high surface pressure during sustained operation in gear oil.

Role and Function:

Adjustment shims play a critical role in mechanical systems by compensating for manufacturing and assembly tolerances. In a differential, accurately setting the backlash between the ring and pinion gear, as well as establishing correct bearing preload, dictates the proper gear contact pattern. Installing a shim of improper thickness can result in accelerated tooth wear or failure.

Typical Symptoms of Wear or Incorrect Adjustment:

• Abnormal Noises: Whining, humming, or growling sounds emanating from the differential or gearbox, particularly during load transitions.
• Excessive Heat Generation: Overly tight bearing preload can cause the assembly to overheat.
• Metal Particles in Oil: Rapid wear due to incorrect gear meshing introduces metallic shavings into the lubricant.
• Axial Play: Excessive end play resulting in vibrations throughout the drivetrain.

During installation, it is recommended to strictly follow the measurement procedures specified in the factory workshop manual (utilizing a dial indicator and micrometer) to achieve exact factory clearance values.
