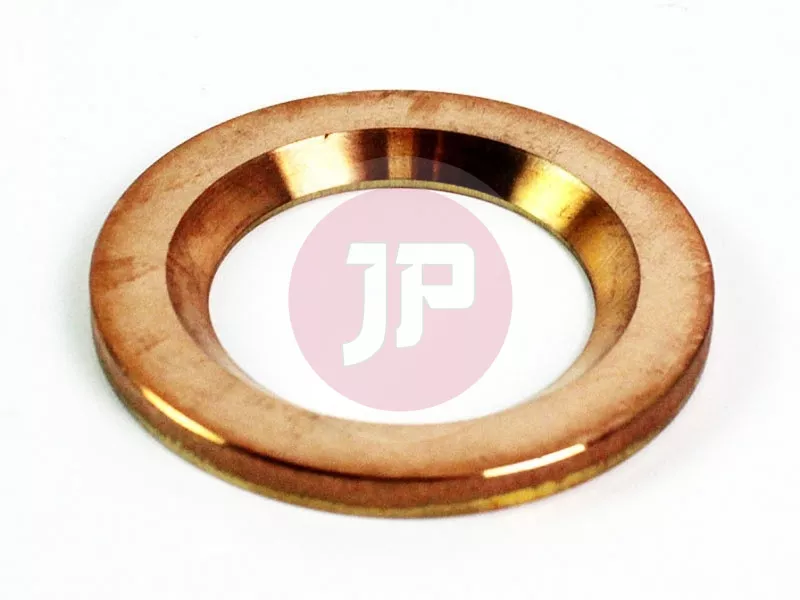

NISSAN 40589-C6000 Axle Shaft Thrust Washer

This genuine OEM NISSAN (SKU: 40589-C6000) drive shaft thrust washer (factory designation: WASHER-THRUST D) is a high-precision drivetrain component essential for ensuring the correct axial clearance between the drive shaft and the wheel hub.

Function and Operating Principle

The primary function of the drive shaft thrust washer is to accurately set the axial end play of the driven axle and to absorb axial forces encountered during operation. Under cornering, acceleration, and braking, significant axial loads act upon the drive shaft. This specially hardened thrust washer prevents undesirable axle movement, thereby protecting the wheel hub bearing, constant velocity (CV) joint housing, and related seals from excessive mechanical stress and premature wear.

Technical Features and Properties

• Material Quality: Highly wear-resistant, hardened carbon steel or specialized alloy designed to withstand continuous friction and high surface pressure.
• Precision Engineering: Manufactured to strict OEM tolerances to ensure a precise fit and smooth, vibration-free operation.
• Surface Treatment: Specialized phosphated or oil-film coating for corrosion protection and minimized break-in wear.

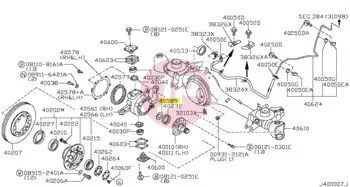

• Installation Position: Positioned between the drive shaft's outer joint and the wheel hub/bearing assembly.

Typical Symptoms of Wear or Failure

When the thrust washer experiences natural wear, thinning, or deformation, the following symptoms may arise:

• Metallic clicking or clunking sounds when pulling away, shifting between forward and reverse, or executing sharp turns.
• Increased axial play in the drive shaft, detectable by hand during chassis inspection.
• Premature failure of the wheel hub bearing caused by inadequate axial support.
• Drive shaft oil seal leaks due to unstable shaft alignment and runout.

During chassis and drivetrain maintenance, especially when replacing drive shafts or wheel bearings, checking the condition of the thrust washers and replacing them as needed is strongly recommended to restore factory operating parameters.
