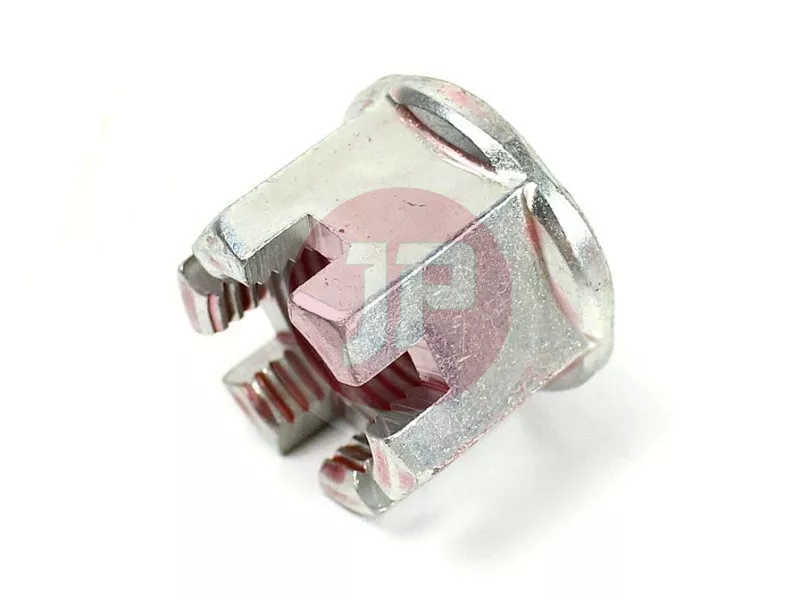

TOYOTA 90171-18004 Ball Joint Castle Nut

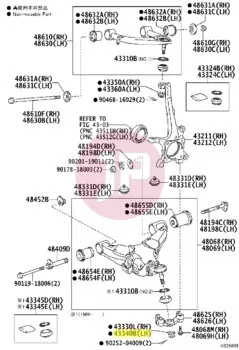

The genuine Toyota 90171-18004 castle nut is a critical safety fastening element primarily used in suspension and steering assemblies, particularly for securing ball joints. The slotted castle design ensures that the nut cannot loosen, even under severe vibration and dynamic loads.

Technical Features and Operating Principle

Radial slots are machined into the upper crown of the castle nut. During installation, a cotter pin (split pin) is inserted through a cross-drilled hole in the ball joint's threaded stud and aligned through the nut's slots. This positive mechanical lock prevents rotation and unthreading, ensuring suspension integrity and stability.

• Type: Castle nut for ball joint
• Material: High-strength, hardened steel for optimal tensile strength
• Surface Treatment: Corrosion-resistant zinc-plated coating to resist moisture, dirt, and road salt
• Factory Quality: Genuine Toyota (OEM) part providing exact fitment and original tightening torque tolerances

Signs of Failure and Importance of Replacement

Because suspension fasteners are continuously subjected to harsh environmental conditions and high mechanical stress, the castle nut may require replacement for several reasons:

• Corrosion and Rusting: Impedes removal and can degrade the structural integrity of the fastener.
• Thread Damage: Stripped or damaged threads caused by over-torquing or improper tool application.
• Crown Slot Deformation: Damaged or worn slots compromise positive mechanical locking with the cotter pin.

In accordance with automotive safety standards, it is strongly recommended to always install a new genuine castle nut and new cotter pin whenever replacing a ball joint or related suspension component.
