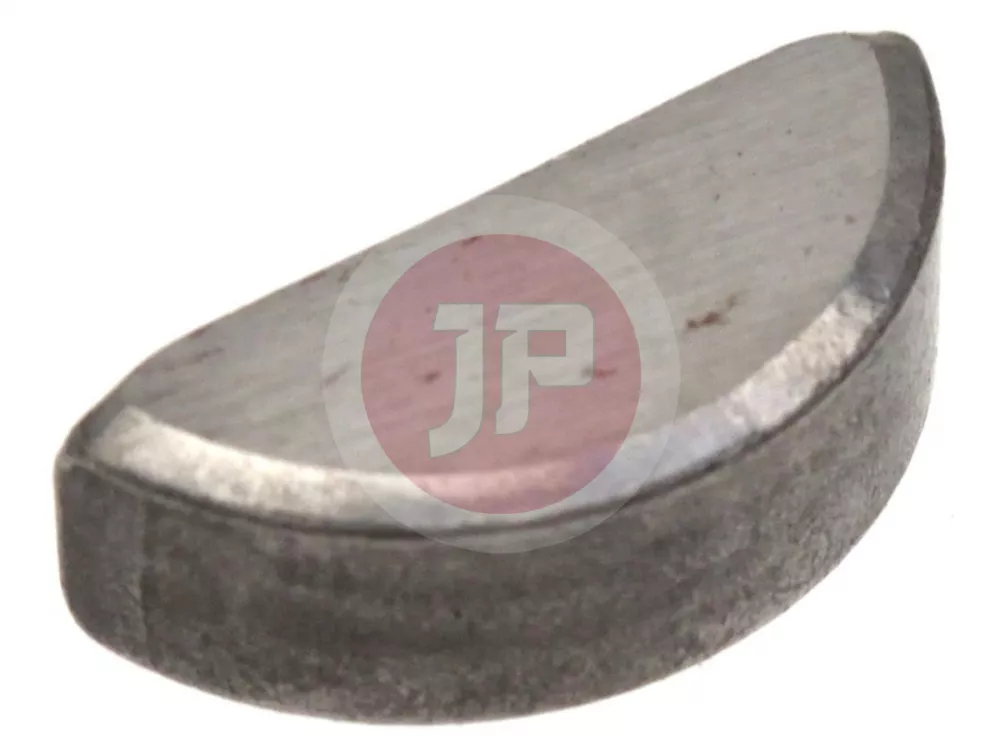

TOYOTA 90280-05008 Crankshaft Key

The genuine OEM TOYOTA 90280-05008 crankshaft key (Woodruff key) is a critical locating and fastening component within the engine timing and power transmission system. This precision-engineered part ensures a solid, slip-free connection between the crankshaft and the mating pulley, sprocket, or gear, guaranteeing accurate synchronization of the engine valves and pistons.

Technical Specifications and Features:

• Type: Woodruff key / crankshaft key
• Material: High-tensile, hardened alloy steel engineered to resist severe shear stress and continuous vibration
• Manufacturer: TOYOTA (Genuine OEM part)
• Installation Location: Crankshaft end, beneath the timing gear or drive belt pulley

Function and Importance:

The primary role of the crankshaft key is positive torque transmission and precise angular positioning. It prevents the pulley or sprocket from slipping on the crankshaft snout, which is vital for maintaining exact valve and ignition timing. Because it is subjected to heavy dynamic loads during engine operation, using a genuine OEM-spec key is essential to prevent mechanical failure and preserve structural integrity.

Signs of Wear or Failure:

• Timing Slippage: Wear or deformation of the key allows slight rotational play in the pulley, leading to erratic idling, loss of engine power, or hard starting.
• Metallic Noises: Rattling or knocking sounds originating near the crankshaft pulley caused by mechanical looseness.
• Catastrophic Engine Failure: A completely sheared key causes immediate loss of engine timing synchronization, which can lead to severe valve-to-piston contact and internal engine damage.

Whenever replacing timing components or disassembling the crankshaft pulley, always inspect the condition of the key and replace it with a genuine new part if any wear or distortion is present.
