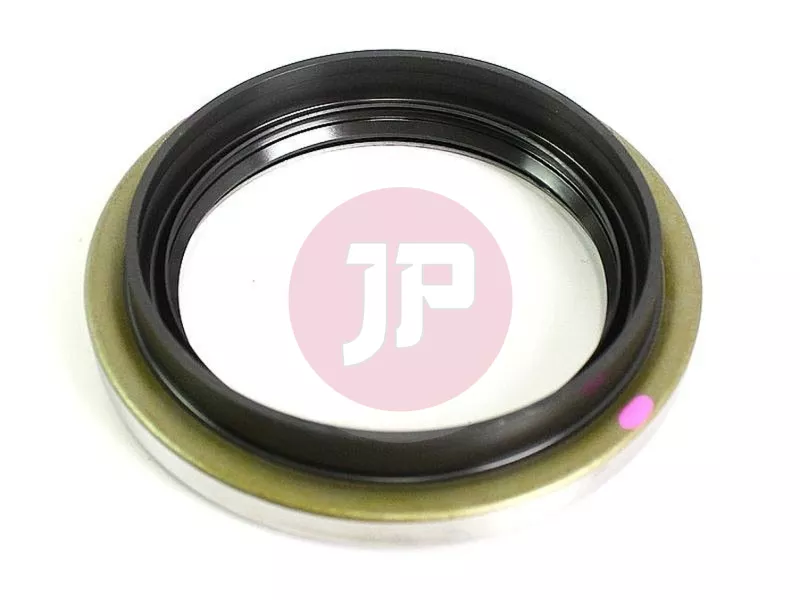

TOYOTA 90311-62002 Wheel Hub Oil Seal
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Product Description
The Toyota 90311-62002 is an original equipment manufacturer (OEM) wheel hub oil seal (shaft seal) that plays a vital role in protecting the vehicle's running gear and wheel bearing assembly. This specialized "TYPE T OI" radial seal ensures the retention of lubricant inside the wheel hub while providing an effective barrier against external environmental contamination.
Technical Characteristics and Operation
The primary task of the wheel hub seal is to keep the lubricating grease or oil inside the sealed wheel bearing system. If the seal fails, lubricant can escape, leading to bearing starvation, overheating, and ultimately premature bearing failure.
- Design: Specialized radial shaft seal (Type T OI) featuring an integrated garter spring that delivers a consistent and uniform radial tension on the shaft, guaranteeing an optimal seal even under variable temperatures and vibrations.
- Material Quality: Made from premium-grade, heat- and oil-resistant elastomer that withstands frictional heat, suspension lubricants, road salts, and automotive chemicals.
- Dust Protection: The profile includes an auxiliary dust lip that prevents fine dust, road grime, water, and mud from penetrating the internal bearing assembly.
Common Signs of Wear or Failure
Due to continuous rotation and harsh environmental conditions, the oil seal undergoes natural wear over time. Seal degradation or damage often manifests through the following symptoms:
- Grease or oil residue on the inner side of the wheel hub, around the brake caliper, or on the brake rotor.
- Diminished braking efficiency if leaking lubricant contaminates friction surfaces.
- Unusual noise (growling or humming sound) from the wheel assembly, signaling insufficient bearing lubrication.
Technical Specifications
- Manufacturer: TOYOTA (Original Equipment Manufacturer)
- Part Number: 90311-62002
- Part Name: Wheel hub oil seal (SEAL, TYPE T OI)
- Installation Position: Wheel hub / stub axle
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.070 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 1998 - ... | SEAL, OIL (FOR REAR AXLE HUB RH) (FZJ105, 1FZFE) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1999 | SEAL, OIL (FOR REAR AXLE HUB RH) (HZJ70, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1992 - 1995 | SEAL, OIL (FOR REAR AXLE HUB RH) (FZJ70, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 4.2 TD (1HDFTE) | 1999 - 2007 | SEAL, OIL (FOR REAR AXLE HUB RH) (HDJ70, 1HDFTE) |
| Toyota | Land Cruiser 70 (J70) | 4.0 (1GRFE) | 2007 - 2017 | SEAL, OIL (FOR REAR AXLE HUB RH) (GRJ79, 1GRFE) |
| Toyota | Land Cruiser 70 (J70) | 4.5 D-4D (1VDFTV) | 2007 - ... | SEAL, OIL (FOR REAR AXLE HUB RH) (VDJ70, 1VDFTV) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZFE) | 2012 - 2014 | SEAL, OIL (FOR REAR AXLE HUB RH) (EJ00008500170002, 1FZFE) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1990 - 1999 | SEAL, OIL (FOR REAR AXLE HUB RH) (HZJ80, 1HZ) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1990 - 1993 | SEAL, OIL (FOR REAR AXLE HUB RH) (HDJ80, 1HDFT) |
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1990 - 1996 | SEAL, OIL (FOR REAR AXLE HUB RH) (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1992 - ... | SEAL, OIL (FOR REAR AXLE HUB RH) (FZJ80, 1FZF) |
| Toyota | Lexus LX (J80) | 4.5 (1FZFE) | 1995 - 1998 | SEAL, OIL (FOR REAR AXLE HUB RH) (FZJ80, 1FZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
