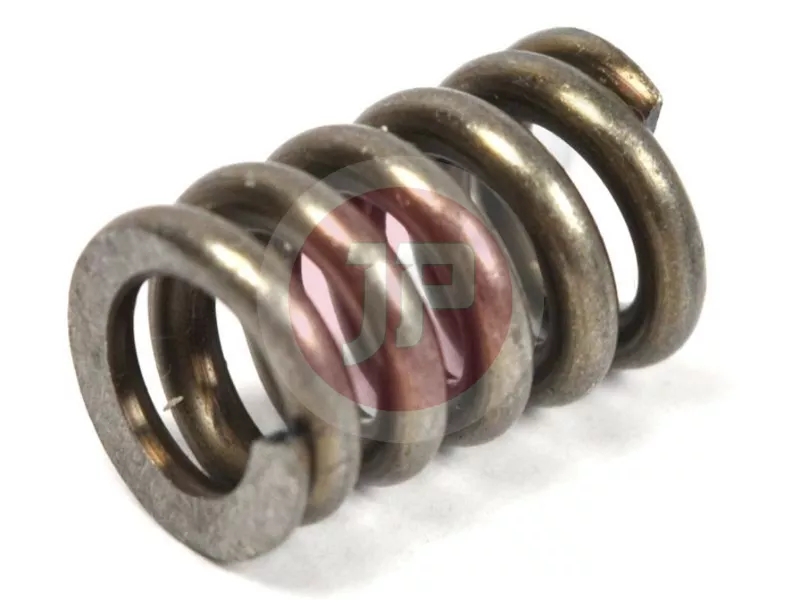

TOYOTA 90501-20095 Compression Spring for Power Piston Plunger

This genuine OEM Toyota 90501-20095 compression spring is a precision component engineered for the accurate mechanical control of the power piston plunger. Primarily used in fuel supply systems (such as enrichment mechanisms in classic carburetor systems), it regulates the fuel mixture composition in response to engine load changes.

Operating Principle and Function

The power piston plunger spring plays a crucial role in engine load-dependent fuel enrichment. Under low load conditions (high intake manifold vacuum), manifold vacuum overcomes the spring force and holds the piston down. When the throttle valve opens (acceleration or heavy load), the vacuum drops and the calibrated compression spring immediately pushes the plunger up, opening the enrichment jet. This delivers the necessary extra fuel to ensure hesitation-free acceleration.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 90501-20095
• Part Type: Precision Compression Spring
• Material: Premium fatigue-resistant and fuel-resistant spring steel alloy
• Application: Fuel delivery and carburetor system power control valves

Signs and Consequences of Failure

Spring aging, tension loss, or breakage has a direct impact on engine performance:

• Weakened spring force: Enrichment is delayed or fails to occur, resulting in hesitation under acceleration, a lean mixture, and reduced engine power.
• Broken spring: Control over the plunger is lost, which can lead to an erratic idle, excessive fuel consumption, or black exhaust smoke (overly rich mixture).

Using a genuine Toyota replacement guarantees the precise spring rate and characteristics required to maintain optimal engine efficiency and emission control.
