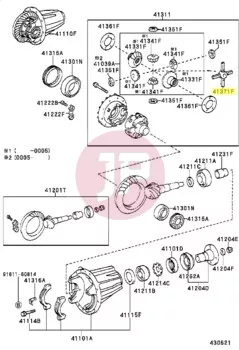

TOYOTA 41371-35020 Differential Spider

Genuine Toyota (OEM: 41371-35020) differential spider, a critical structural component of the vehicle drivetrain. This precision component provides stable retention and an axial pivot for the differential pinion gears, enabling smooth torque distribution between the wheels during cornering.

Operating Principle and Significance

The differential spider establishes a direct mechanical connection between the differential case and the pinion gears. When the vehicle corners, the inner and outer wheels rotate at different speeds. The cross-shafts of the spider allow the pinion gears to rotate independently while evenly distributing drive torque from the engine to the axle shafts. This component is engineered to withstand extremely tight tolerances and severe mechanical loads.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 41371-35020
• Part Type: Differential Spider / Pinion Cross Shaft
• Material Composition: Specially hardened, high-tensile steel alloy for minimal wear and maximum service life
• Surface Finish: Precision-ground to minimize friction and heat generation

Symptoms of Wear and Failure

The differential spider is exposed to continuous mechanical stress, particularly during heavy off-road driving, towing, or hard acceleration. Common indicators of wear or failure include:

• Metallic knocking or clunking noises from the drivetrain when shifting between drive and reverse or during acceleration.
• Metallic humming or whining noise coming from the differential, especially while cornering.
• Presence of fine metallic particles during differential fluid replacement, indicating surface wear on the shaft.
• Increased drivetrain play or backlash.

Replacing a damaged or worn differential spider is critical to prevent consequential damage to surrounding differential components (such as pinion and ring gears) and to ensure safe vehicle operation.
